Description

Daisy is a 57 " (17.36 Meter) bespoke mini lux Dutch barge, manufactured by the renowned boat builder Sagar Marine of Brighouse West Yorkshire in 1994.
Daisy has been officially certified as VAT paid in the European Community and is priced to sell with no hidden extras.
She is unique in construction with an enviable large open rear well deck with wrap around seating, stepped front coach roof and fixed wheelhouse, all doors and windows are constructed from hardwood with 6 large brass portholes.
Capable of sleeping 6, Daisy has navigated the English Channel, the majority of the French waterways as well as Belgium and Holland.
There is a plethora of storage space throughout with full access to all bilges and systems.
We are non-smokers and have owned and lived permanently on board for 7 years

Specifications

Accommodation

Wheelhouse
Engine control panel, single morse engine control lever, hydraulic steering with antique steering wheel, 24v & 240 v control panels, generator remote control panel, solar control panel, victron battery monitor.
Single Radiator,
Two single seats with storage under.
Access hatches to Port and starboard side of engine room
2 x 240 volt sockets
2 x USB charging sockets

Open plan saloon with hardwood flooring and hatches to under floor storage, reclining 3 seat leather settee, 2 seat bed settee, 32 inch LCD TV with freesat controller.
Squirrel Morso multi fuel stove.
Daikin reverse cycle air-conditioning unit.
Solid oak extending dining room table able to seat 4.
Drinks cupboard and further storage cupboards.
10 x 240v sockets
2 x USB Charging sockets
2 radiators

Kitchen
Full size LPG gas hob and oven.
240volt Indesit fridge freezer.
Beko 6kg washing machine and full size condenser tumble drier housed on the aft deck.
240v cooker extractor hood, externally vented.
Pull out larder and pan drawer plus additional storage drawers.
Solid oak worktop
Double stainless steel sink unit
3x 240v sockets

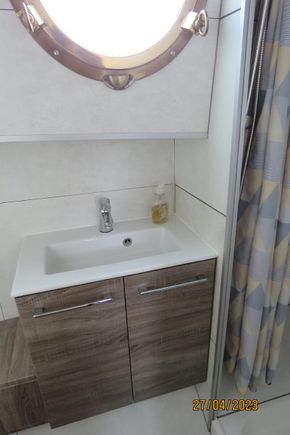

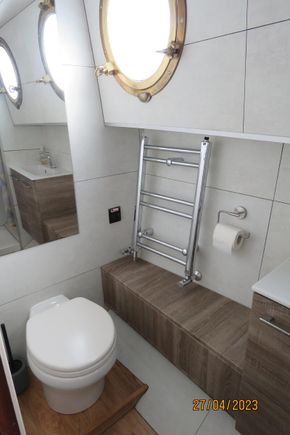

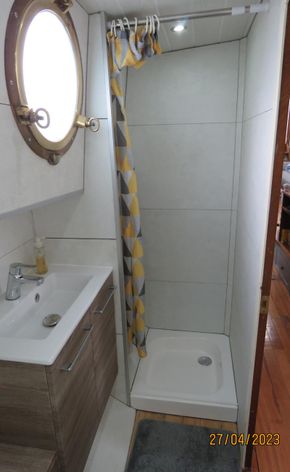

Shower room
24v electric macerator leesan head master toilet
Ceramic shower tray and wash basin
Dual fuel towel radiator
Extractor fan externally ventilated
Two portholes
Solid wood flooring

2nd bedroom
Twin single bunk beds
Wardrobe and drawer storage
Underbed storage
Single radiator
Port hole
Solid wood flooring
4 x 240v socket

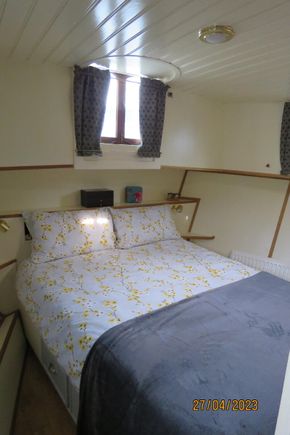

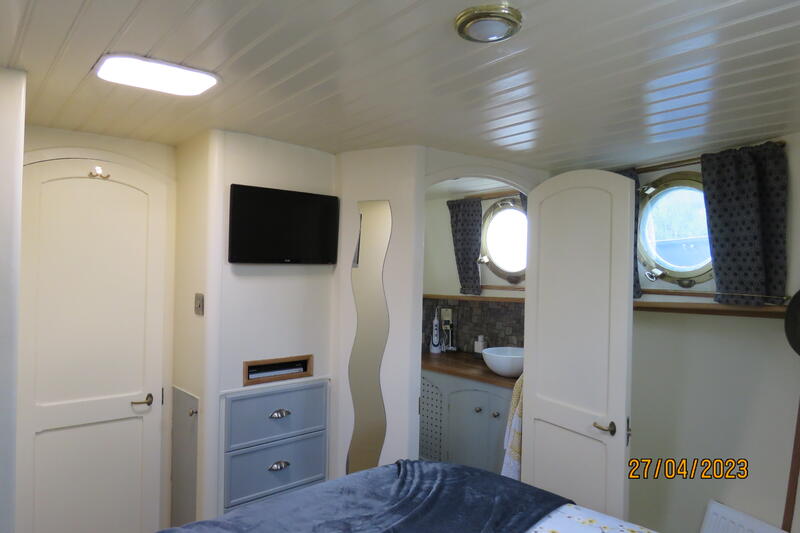

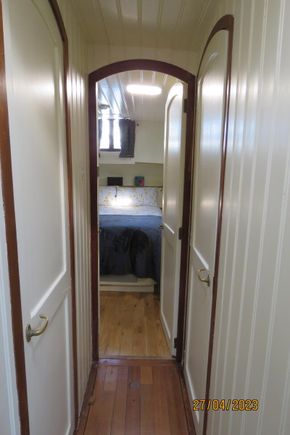

Main bedroom
Double bed with storage under
Wardrobe and drawer storage
20inch TV with freesat controller
2 radiators
2 portholes and opening window fwd (means of escape)
Solid wood flooring
4x 240v sockets

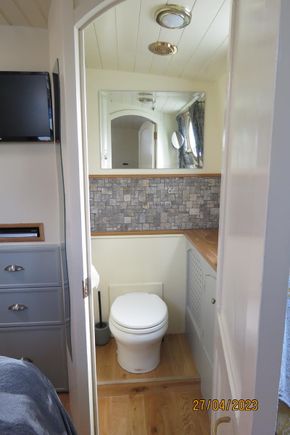

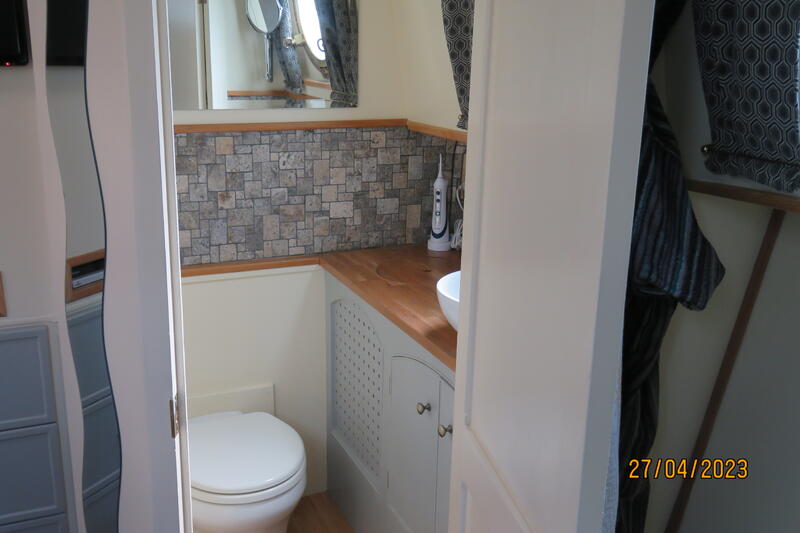

Ensuite
24v electric macerator leesan headmaster toilet
Ceramic wash basin
Storage cupboard and laundry cupboard
Port hole
Solid wood flooring
240v shaver point

Aft deck
Wrap around sumbrella covered seating for 6 persons (have had up to 10) - storage under
Solid teak folding dining/drinks table
Full canopy with zip in side curtains to give 100% protection from the elements
Storage units for washing machine & tumble dryer
Weber gas BBQ

LED Lighting throughout the barge
Head height throughout in excess of 2m

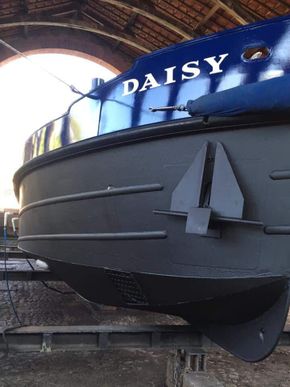

Construction

All steel plate 43A Grade de-scaled
Skeg bar 100mm x 40mm flat bar
10mm Flat bottom and Chines
6mm Hull sides, cabin sides and deck
5mm cabin roof
4mm bulkheads
10mm engine room bulkhead
6mm forward bulkhead
Floor braces 230mm x 75mm angle at 610mm centres
Chine frames 50mm x 25mm flat bar at 610mm centres
Hull side frames 75mm x 25mm at 610mm centres
Hull stringers 50mm x 25mm at 300mm centres
Cabin stringers 25mm x 25mm RHS
Roof stringers 50mm x 50mm x 6mm tee at 400mm centres

Navigation Equipment

VHF radio

Engine(s)

Perkins Sabre 135M driving through a PRM reversible gearbox
Aqua drive unit
50mm shaft
Conventional greased stern gland
25" x 14" three blade phospher bronze propeller
24v Noble bow thrust unit
24 Volt Lofrans anchor winch with gypsy wheel
Domestic Parmax 4 water pump
5.5 kw whisper power SC6 generator
Eberspächer S3 D5E diesel water heater (feeds 7 radiators throughout the barge)
Twin coil (main engine & Eberspächer) 65ltr hot water tank with 240volts immersion
Victron 24v 3000w 70amp charger inverter
20ltr expansion tank
4 x 165 ah victron gel house batteries wired for 24v
2 x 110 ah AGM engine start batteries
2 x 110 ah AGM bow thruster batteries
1 x 70 ah AGM Generator start battery
600w flexible solar panels with 20amp controller
Vetus Black tank pump
Automatic bilge pump
Manual bilge pump
Fuel storage tank
Storage boxes

Sails & Spars

Mooring ropes
Winter berthing Ropes
Fenders (inflatable plus TIPTOP)
Gangway
Boathooks
35m chain and Anchor

Safety Equipment

Life Jackets X6
CO2 Alarm
Smoke Alarm
Bilge Alarm
Fire Extinguishers
