St Katharine's Dock, London London UK
|Website:||Open website in new window|

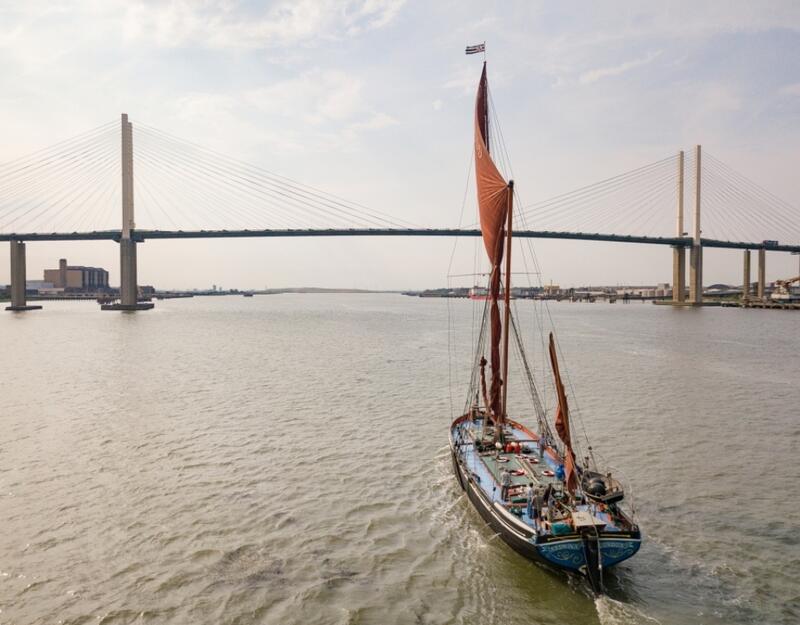

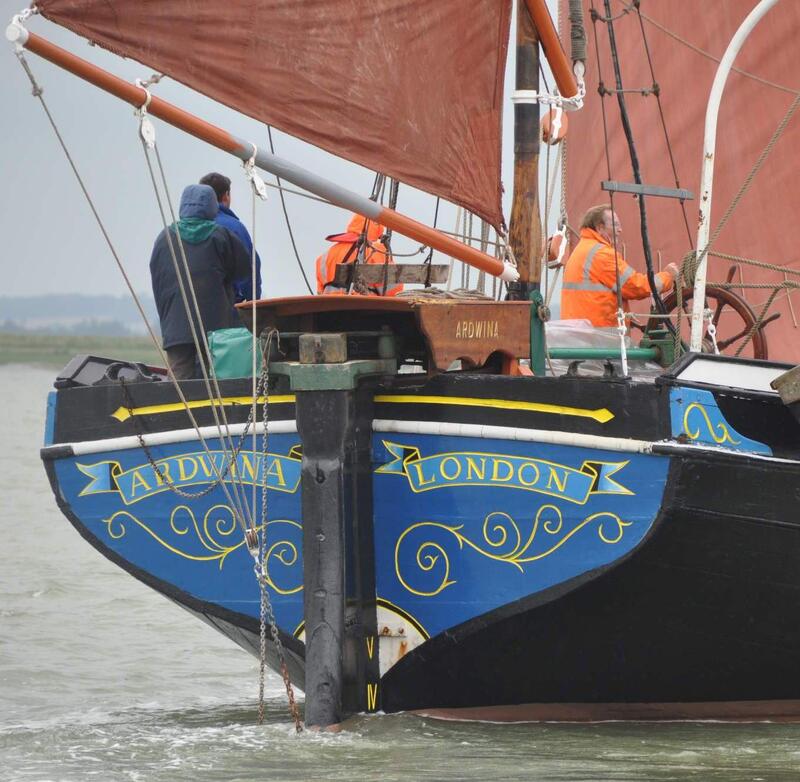

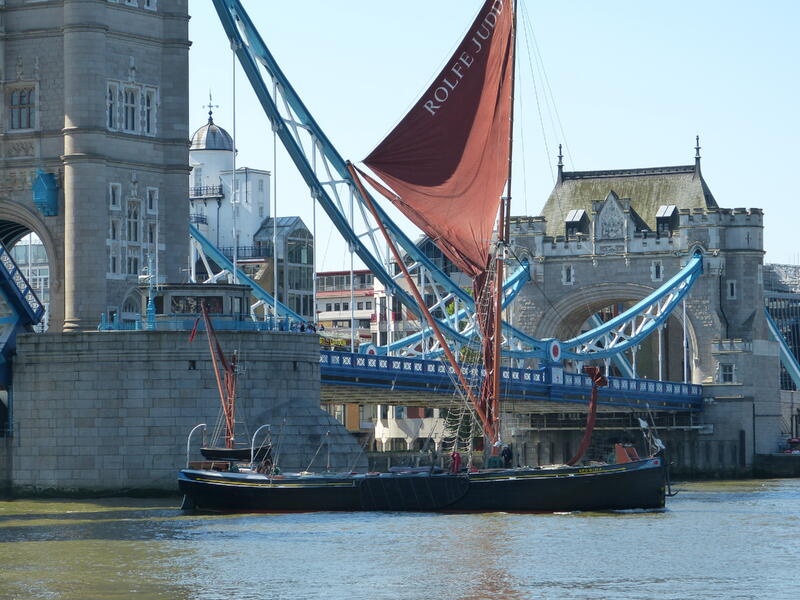

85ft Thames Sailing Barge Ardwina, a timber hull and decks

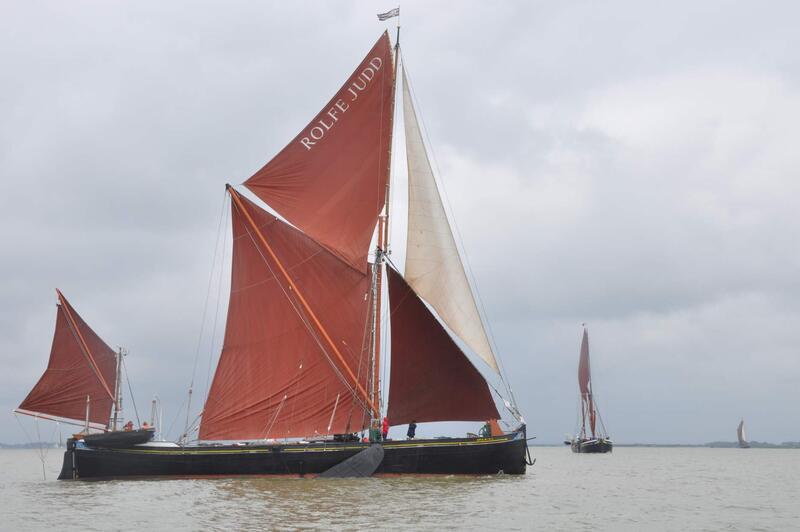

Traditional spritsail rig, with wooden leeboards.
Built by Orvis & Fuller of Ipswich,1909, (the last Barge built in Ipswich).
Converted to a barge yacht in 1959, then refitted in 1970 and again in 1989/90.
Her present owners acquired her in 1980, she has been raced and sailed and was the Champion Barge in 1982. Owned by a firm of Architects she has been used for corporate events and entertaining for static events and trips on the river,
She could entertain up to 12 passengers, when sailing. when alongside (static) she could comfortably entertain up to 50 persons.

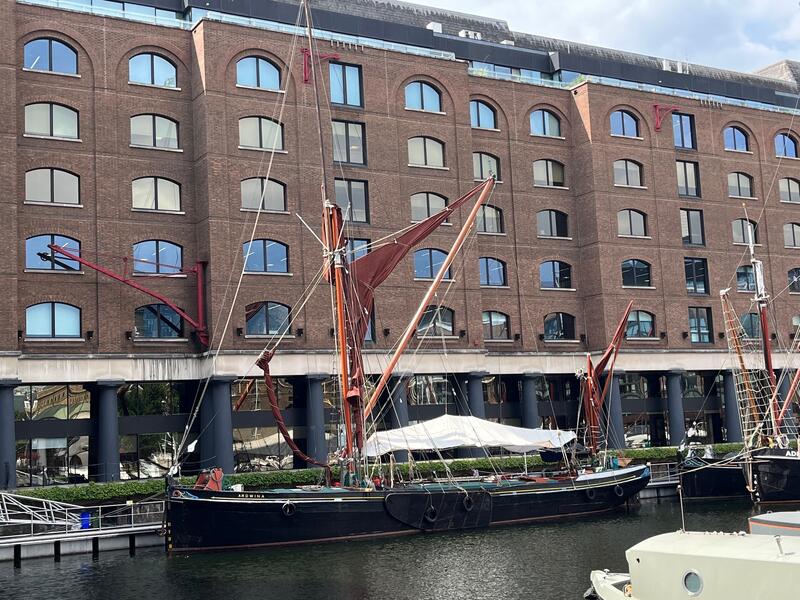

Her regular moorings have been in Ipswich and presently in St Katharine's Dock in London.
The last survey was undertaken in dry dock in Maldon, July 2021. A programme of works, has to be undertaken before she will be credited with her sailing Exemption Certificate for carrying customers. She is now out of code and effectively insured as a private barge yacht. July 2022
She would make a comfortable home, afloat. full of original features and fittings. A real piece of industrial maritime history.
|Condition:||Good, continually maintained and painted|
|Vessel type:||Wooden flat bottomed ex Trading vessel|
|Builder:||Orvis & Fuller Ipswich|
|Model:||Spritsail sailing barge.|
|No. of engines:||1|
|Engine model:||Leyland Tempest|
|Fuel Consumption:||3 Gallons Per Hour|
|Drive type:||Shaft drive|
|Cruising Speed:||6 Knots|
|Maximum Speed:||8 Knots|
|Length over all:||84'|
|Length of deck:||84'|
|Length at waterline:||82'|
|Draft, keel down:||12'|
|Displacement:||66 metric tons|
|Fuel capacity:||200 Gallons|
|Water capacity:||200 Gallons|
|Holding tank capacity:||200 Gallons|

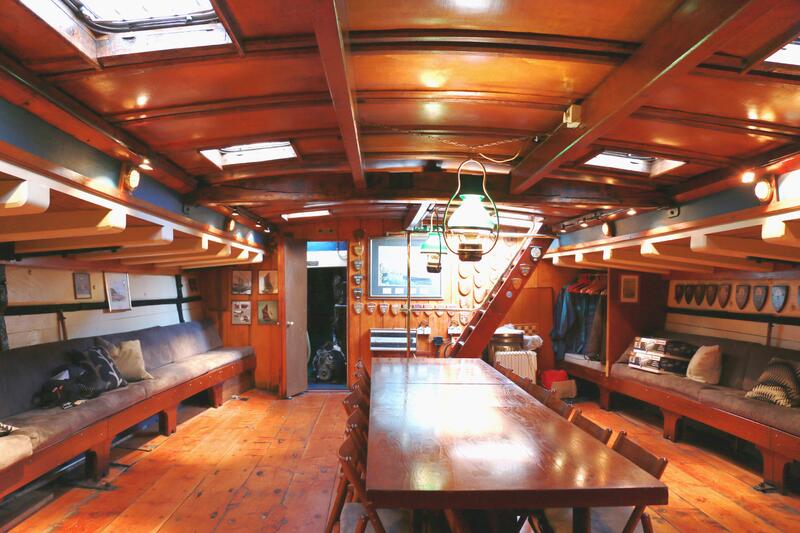

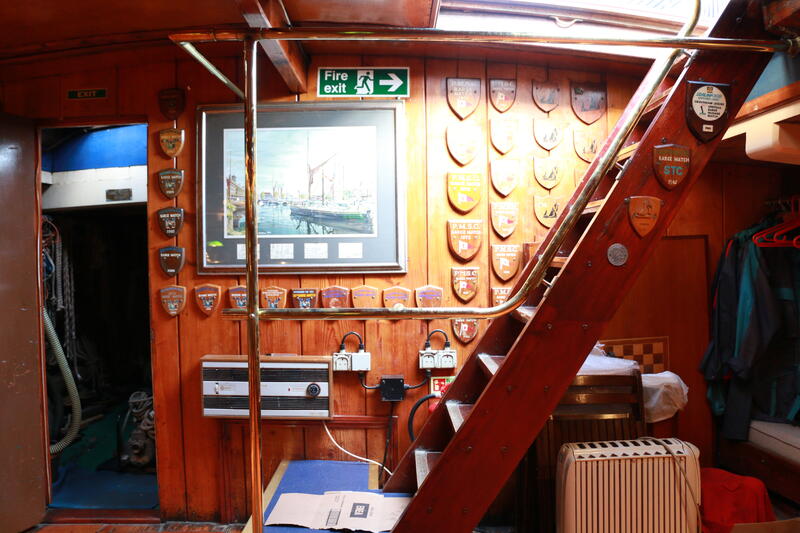

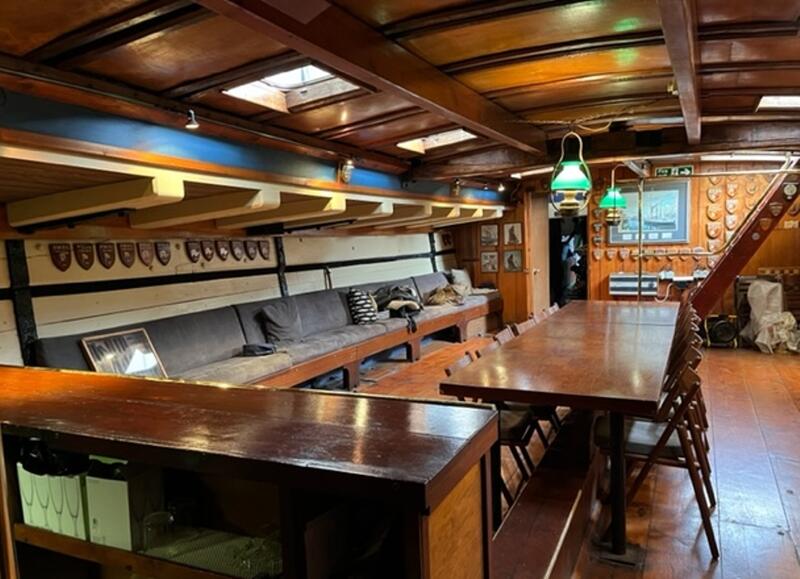

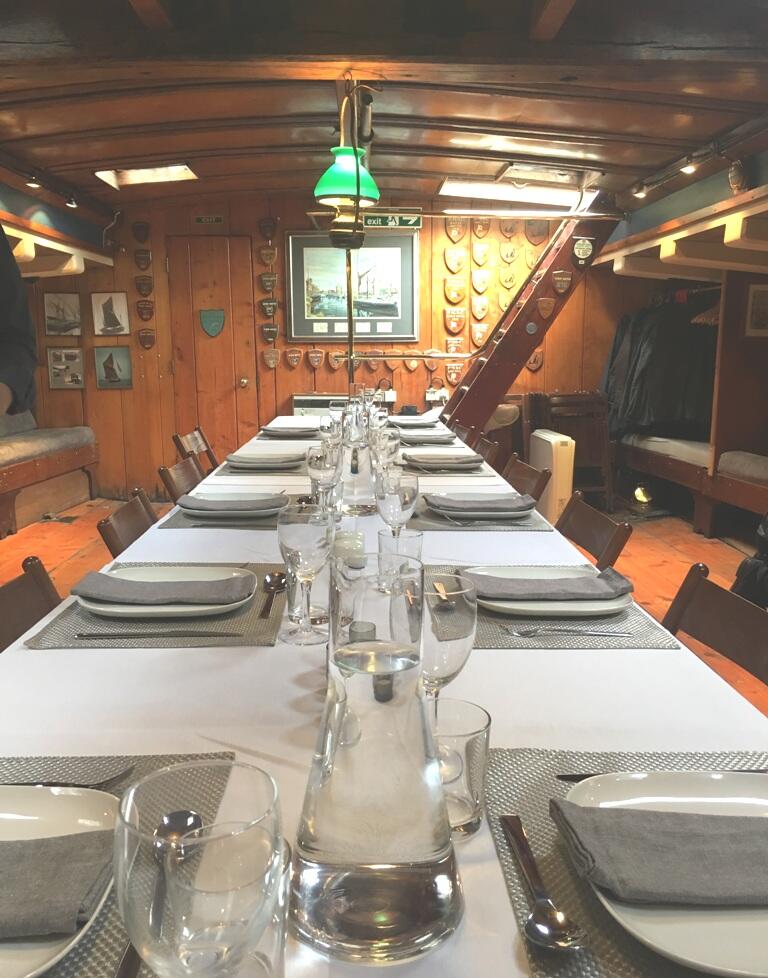

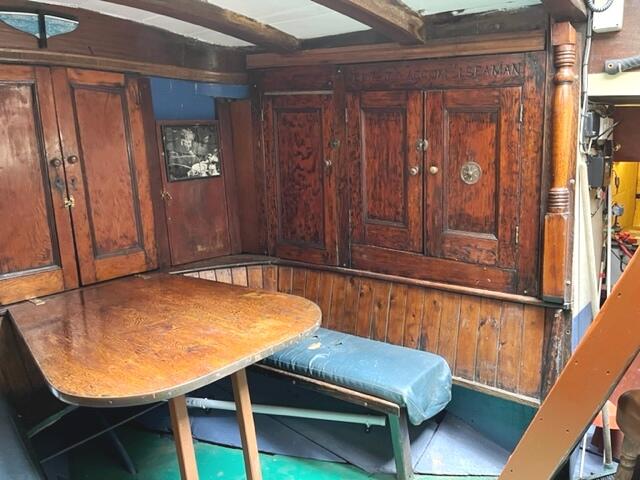

Well fitted out below. Comfortable accommodation for 12 passengers ( when required). A large saloon / dining room ( capacity for 20 persons seated at an extendable dining table). Comfy settee seating under her side decks.
Generous headroom 6ft 4ins under the hatch boards ceiling. Paint and varnished finish. Beautiful solid planked wooden floor (sealing) varnished finish.

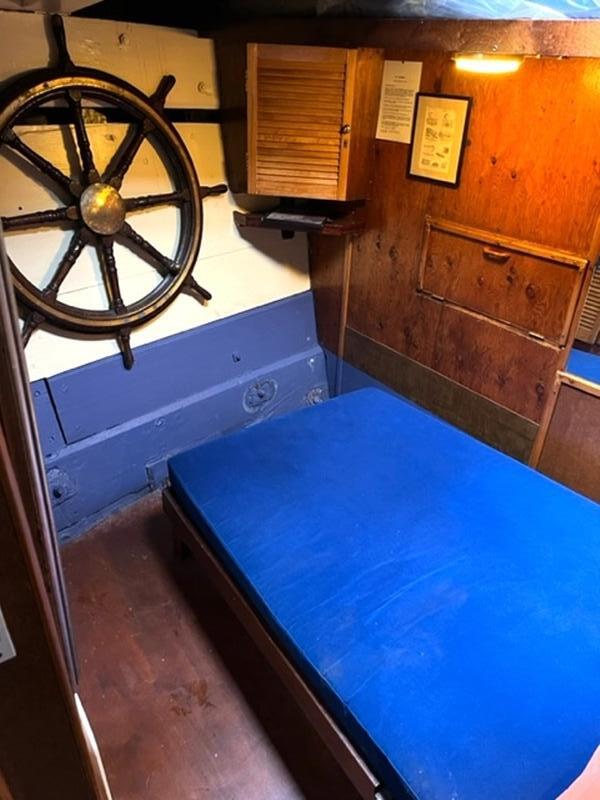

4 cabins : 1 double en suite 3 cabins with 2 single bunks

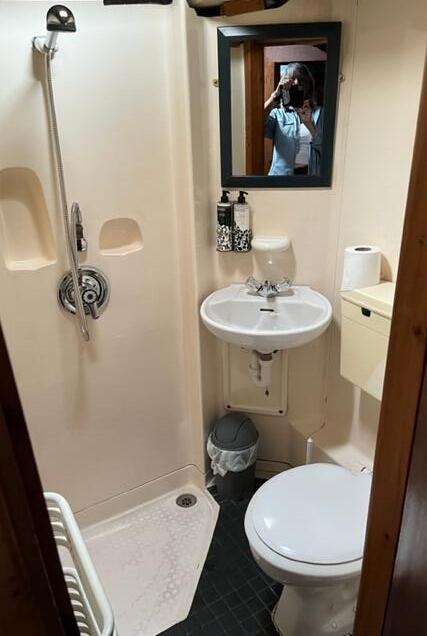

1 x electric toilets with black tank.( plus 1 x electric sea toilet)
2 x Showers, pressurised Hot and Cold water system.

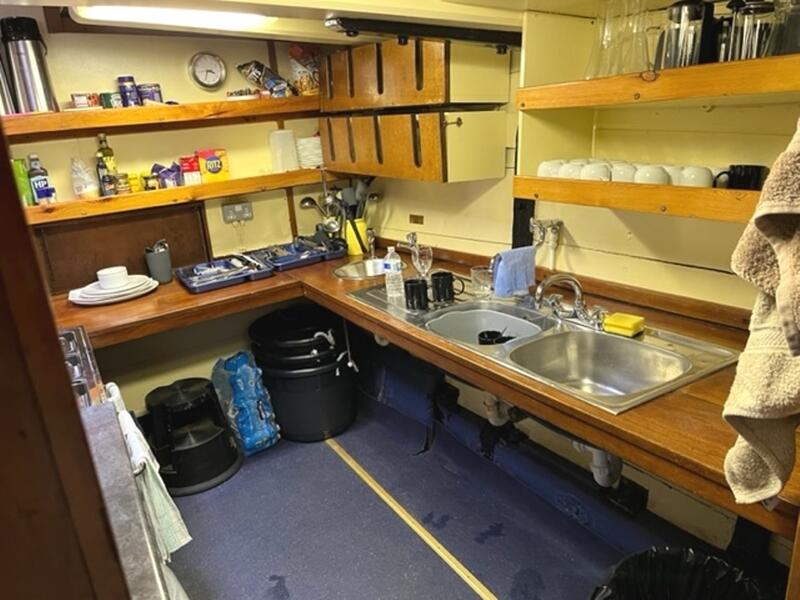

Commercial gas and electric hob and double oven.
Galley sink x 2, plus small hand wash basin.

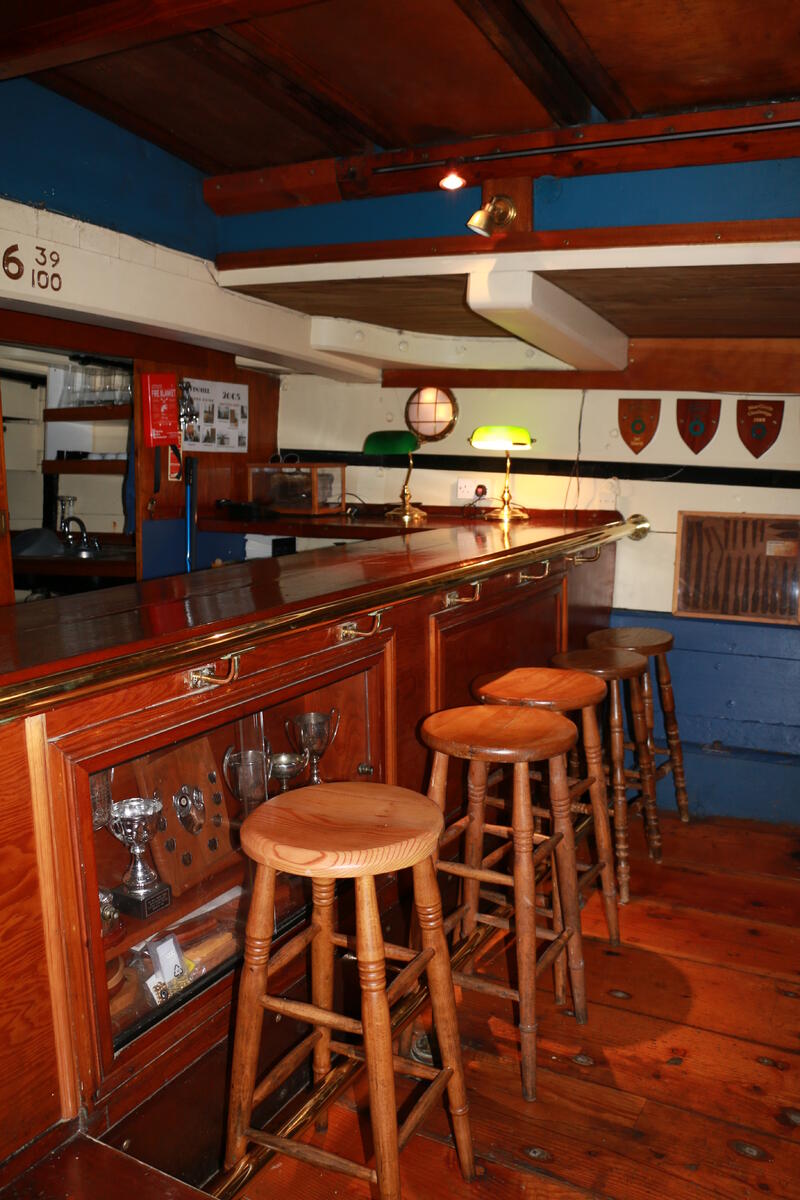

A Bar area integral to the saloon.
Electric powered radiators throughout.
Wooden hull, flat bottomed,internal I-beam keelson, pair wooden leeboards.
Robust timbers and frames, Double skinned.Black painted finish
Ongoing work schedule of repair and replacement.
Her framing is of considerable size and much has now been replaced
with new timbers
The Barge was originally built to carry loads in excess of 150 tons, no longer carrying cargo. Less physical stress is put on the structure.

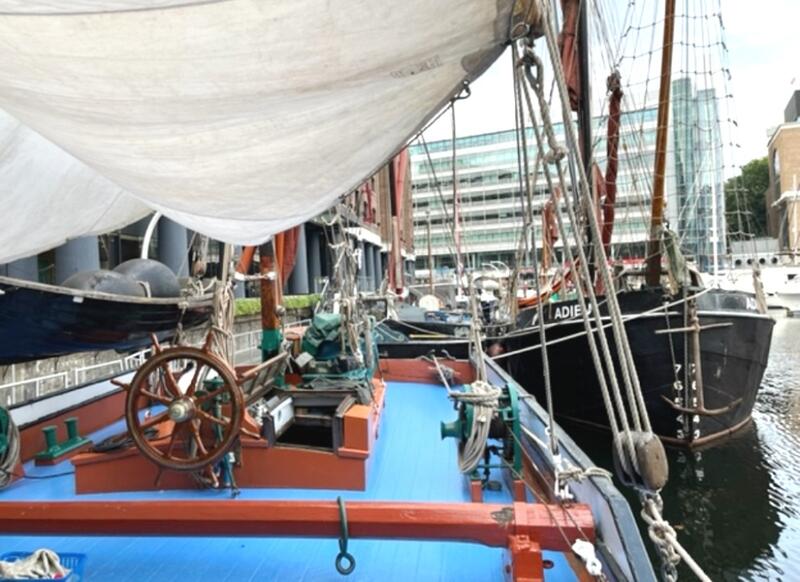

Much of the deck has been replaced with Iroko planks Sikaflex in the seams, blue painted finish.

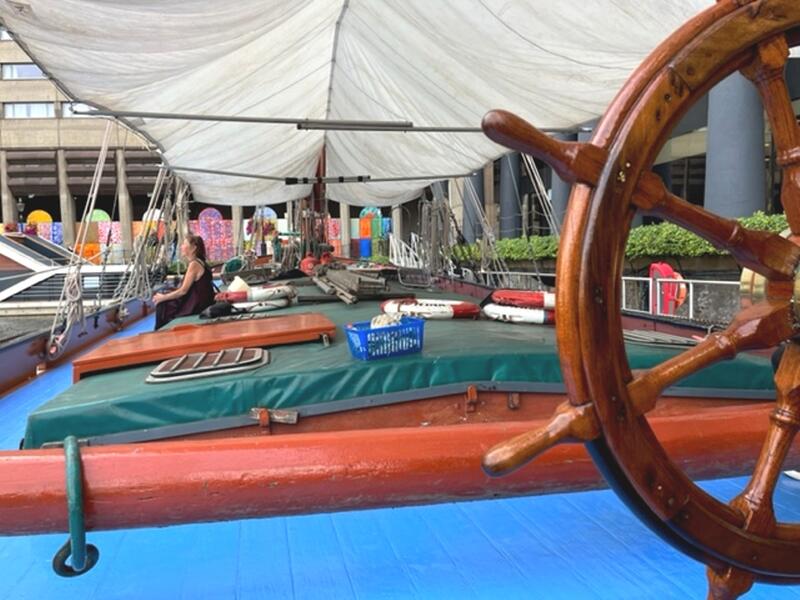

Large ships wheel
Wooden Lee boards
Main bower anchor of fisherman’s type 400 lbs, bow roller and chain
Windlass: Traditional Thames barge type consists: timber bits, gear wheels,

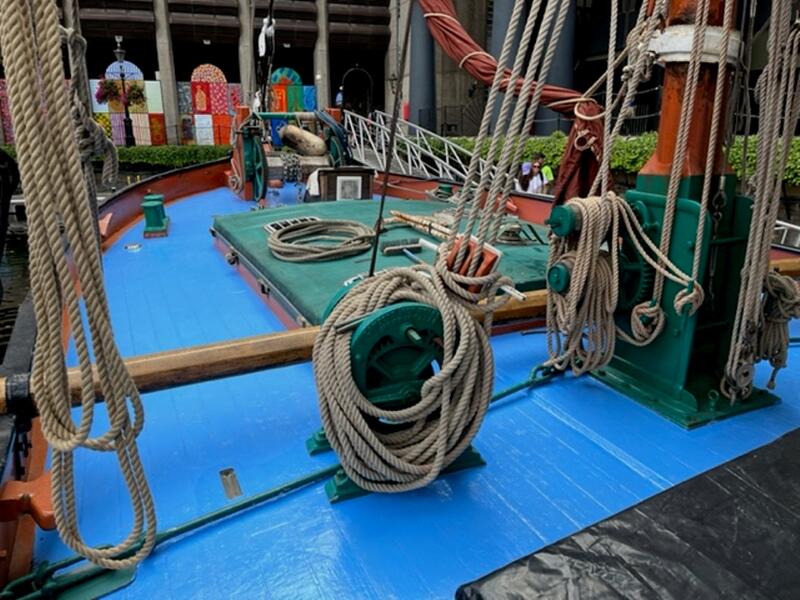

2 x crab winches (lee board winches) original cast iron.

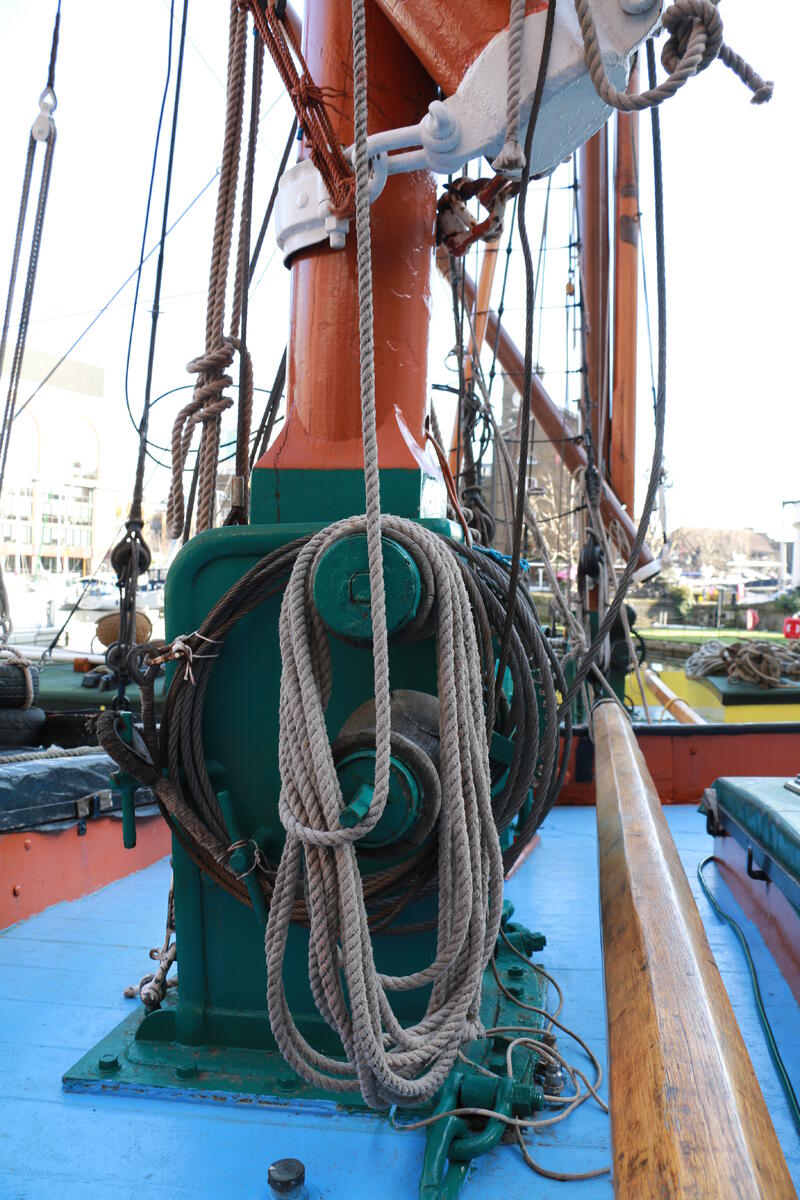

Brail winch port side in way of Steel mast case
Mast case winch
Painted steel Davits, sheets and blocks in good condition.
GRP simulated clinker barge boat.

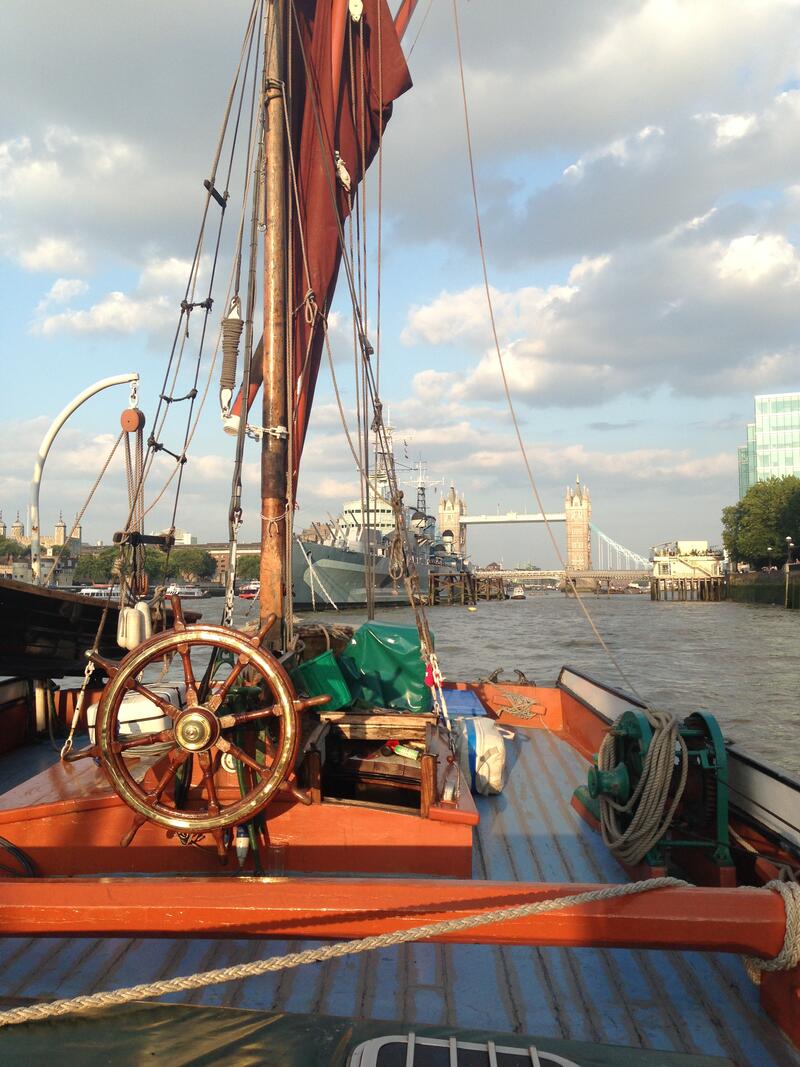

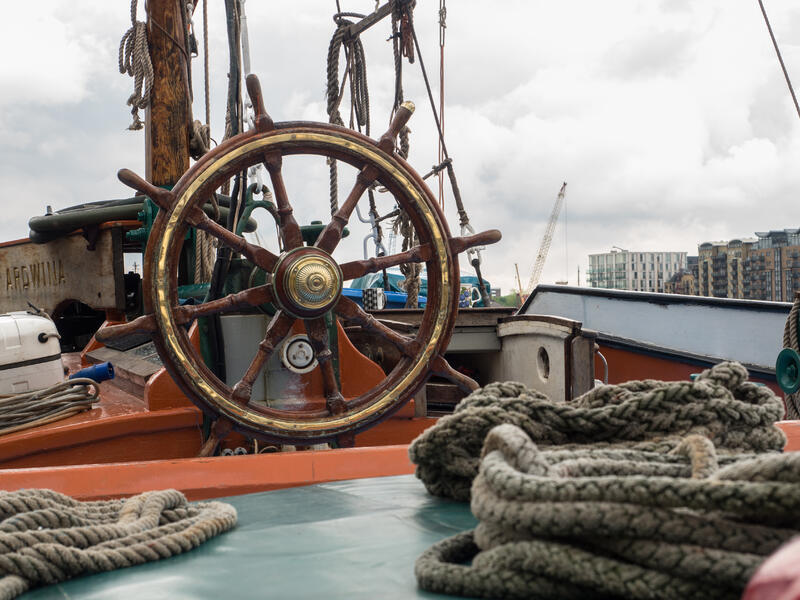

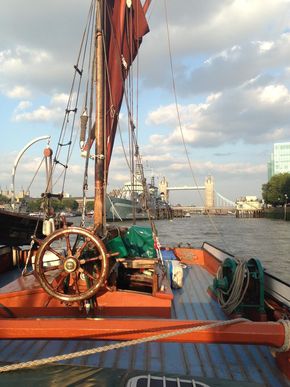

Ships wheel (Wheel steering)
B&G Echo sounder
Raymarine Chart Plotter with AIS

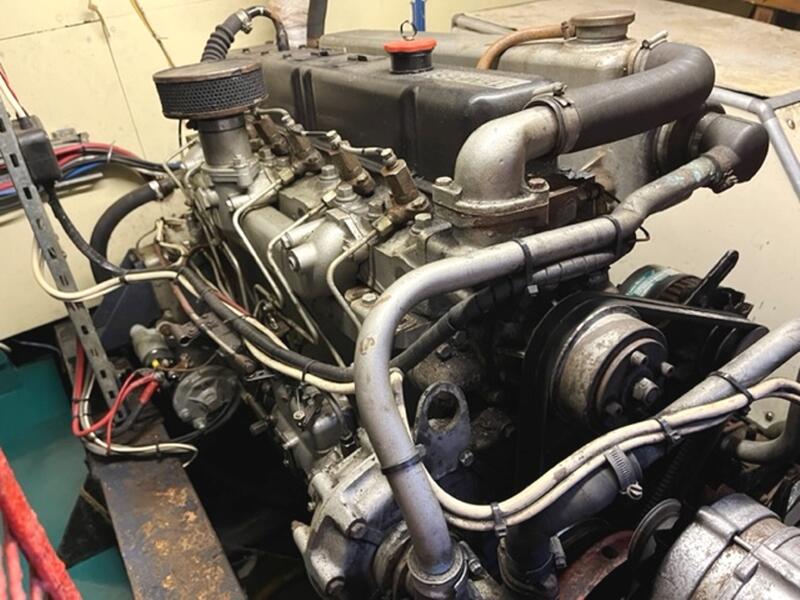

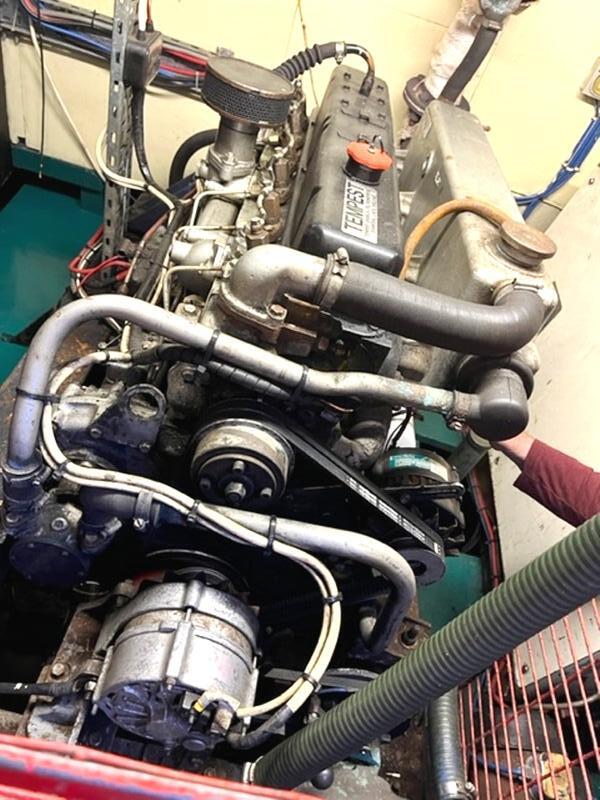

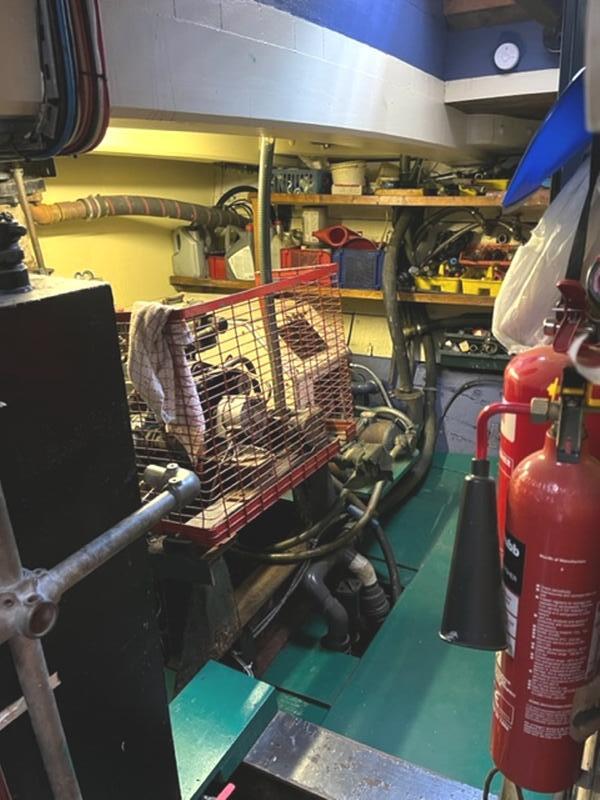

A six-cylinder Leyland Tempest, 6 cylinder, naturally aspirated, water cooled
diesel fuelled engine, 120hp indirectly cooled via heat exchanger, oil driven PRM gear box 2:1. Dedicated engine room
Flexible mounts on steel fabricated beds fastened to timber bearers over
floors. Shaft driven connected via a constant velocity drive.
Last serviced May 2021
All mechanics are very well maintained, separate engine room and bosuns store.

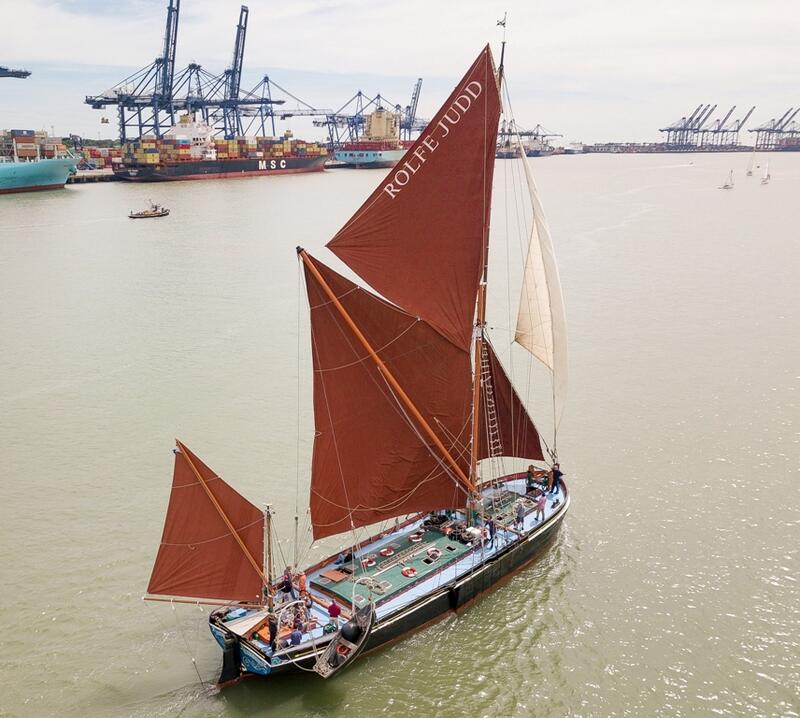

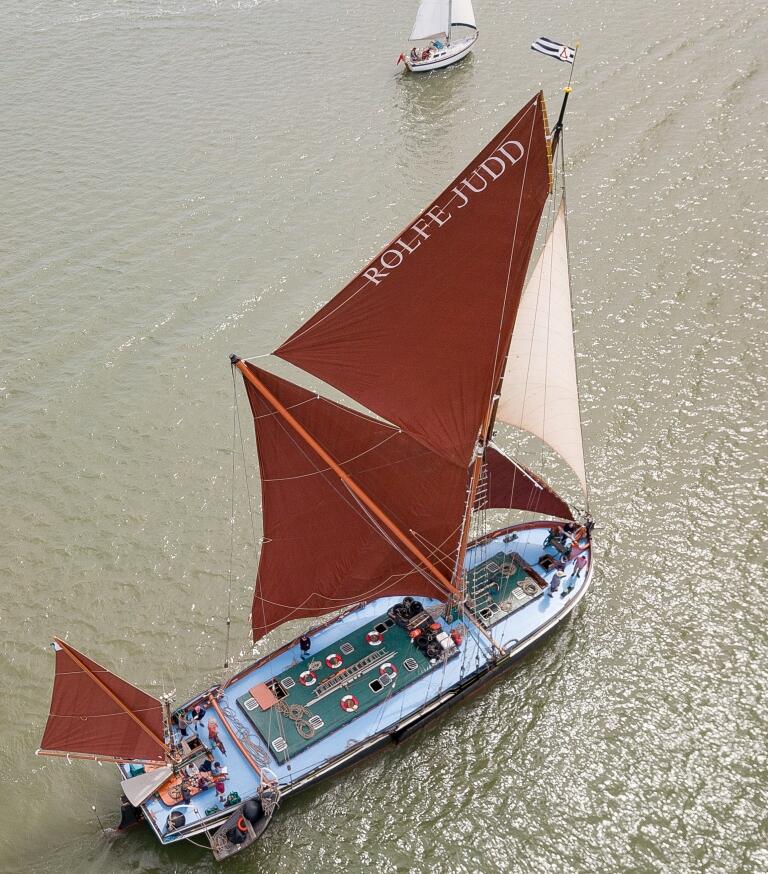

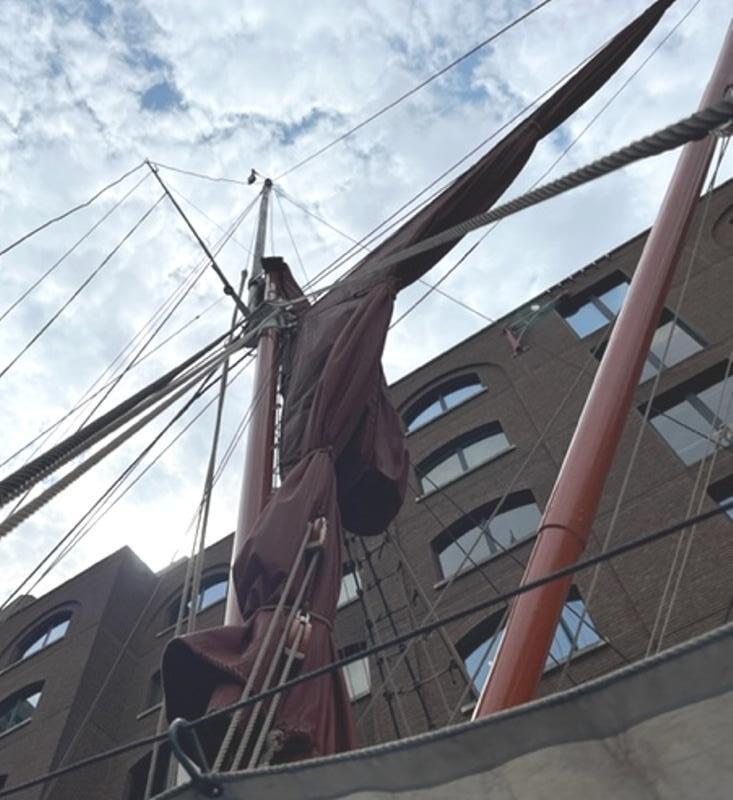

Deck steeped main mast in metal tabernacle and top mast,
a main sprit, a mizzen mast with boom and sprit).
Timber main horse, fastened with steel straps a iron traveller
Fore horse of timber with steel straps.
Galvanised wire standing rigging and rope running rigging .

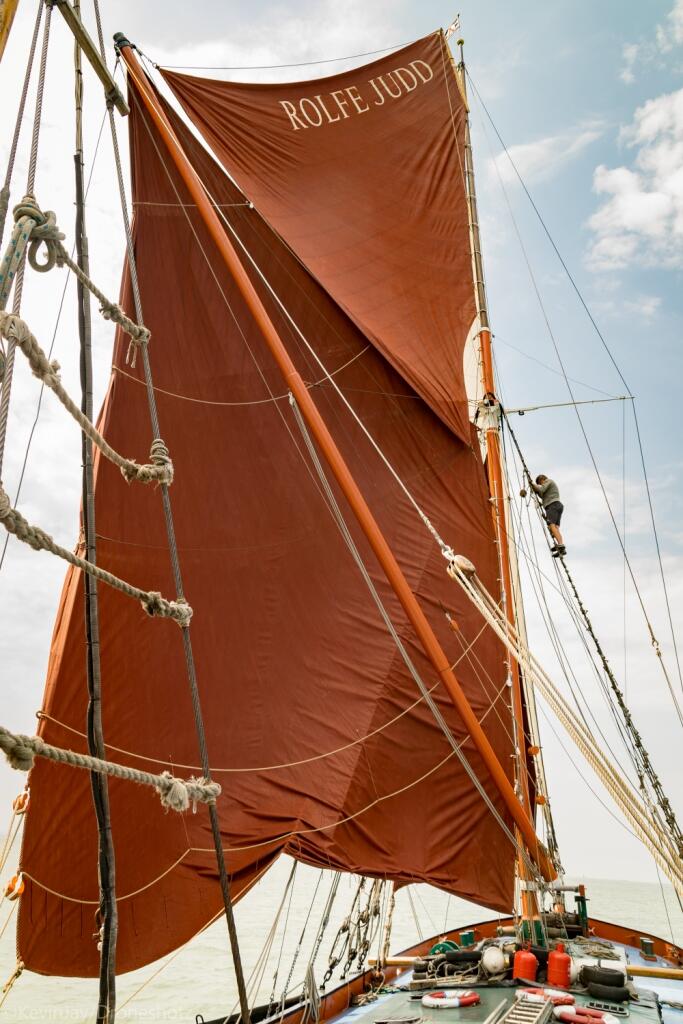

Main sail Topsail and mizzen, all in clipper cloth made by North Sea Sails, Tollesbury in excellent condition.
A Foresail by Valiant in canvas in fair condition
240v and 12v electric systems throughout the vessel.
240v Vectron battery charger /manager

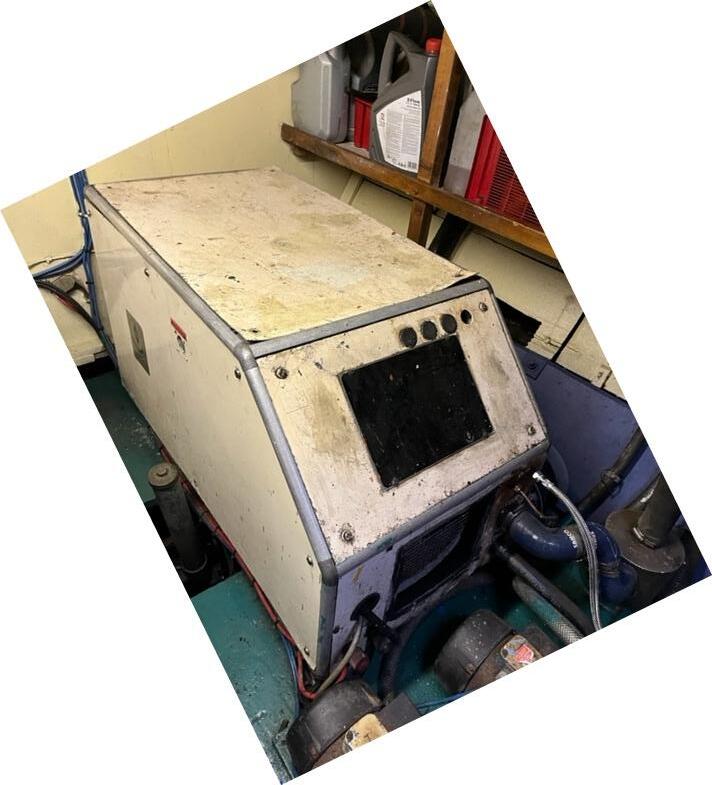

Shower power and a generator
12v lighting and polar
Deck wash pump
First aid boxes.
